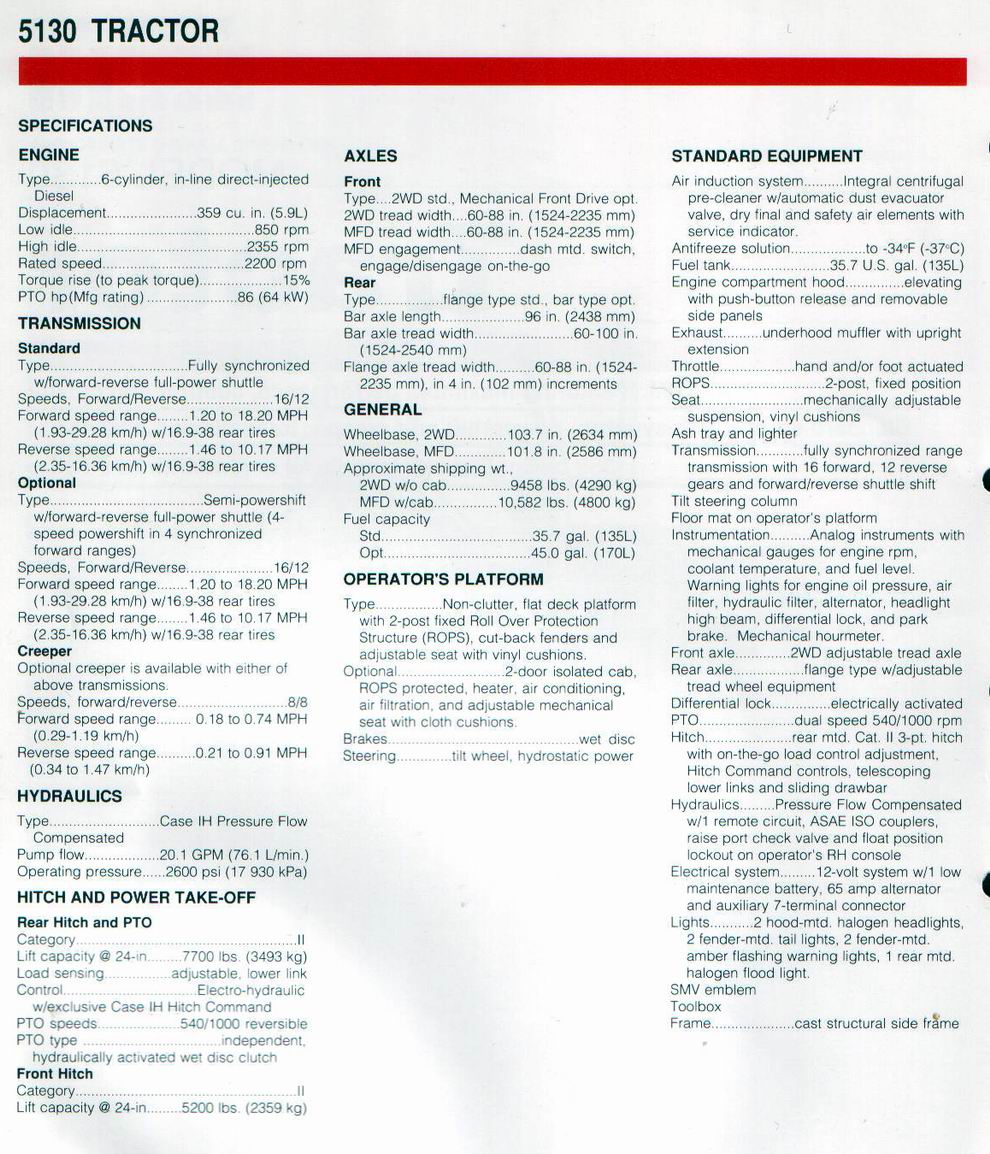

Maxxum 5130 |
|
Bildergalerie |
|||||||||
| Baujahre (Built Years) |
1990-1997 |  |
 |
    |
|||||||
| Stück (Built Units) |
15781 | ||||||||||
| Motor (Engine) |
NCE 6-390 | ||||||||||
| Art / Zyl. (Type/Cylinder) |
6-Zyl.-Diesel | ||||||||||
| Hubraum (Displacement) |
5883 cm³ | ||||||||||
| U/min. (rpm) |
2200 |   |
|||||||||
| PS (Engine-HP) |
100 / 105 |  |
|||||||||
| Getriebe (Transmission) |
PowerShift 16+12 40 km/h | ||||||||||
| Bereifung (Tyres front/rear) |
14.9-24 / 16.9-38 | ||||||||||
| Gewicht (Weight) |
4340 - 4820 kg | ||||||||||
| Seriennummer (Serial-No´s) |
* * * |
||||||||||
| Alle Maxxum hatten
den gleichen Serien-Nr.-block JJF1000001 - 1067931. Die
Typenbezeichnung 52.. wurde für einige Exportmärkte
eingeführt. All Maxxum tractors were signed with the same serial-no. range from JJF1000001-1067931. The tractors of type 52.. were introduced for export markets. |
|||||||||||
| © matbush August 2011 |
