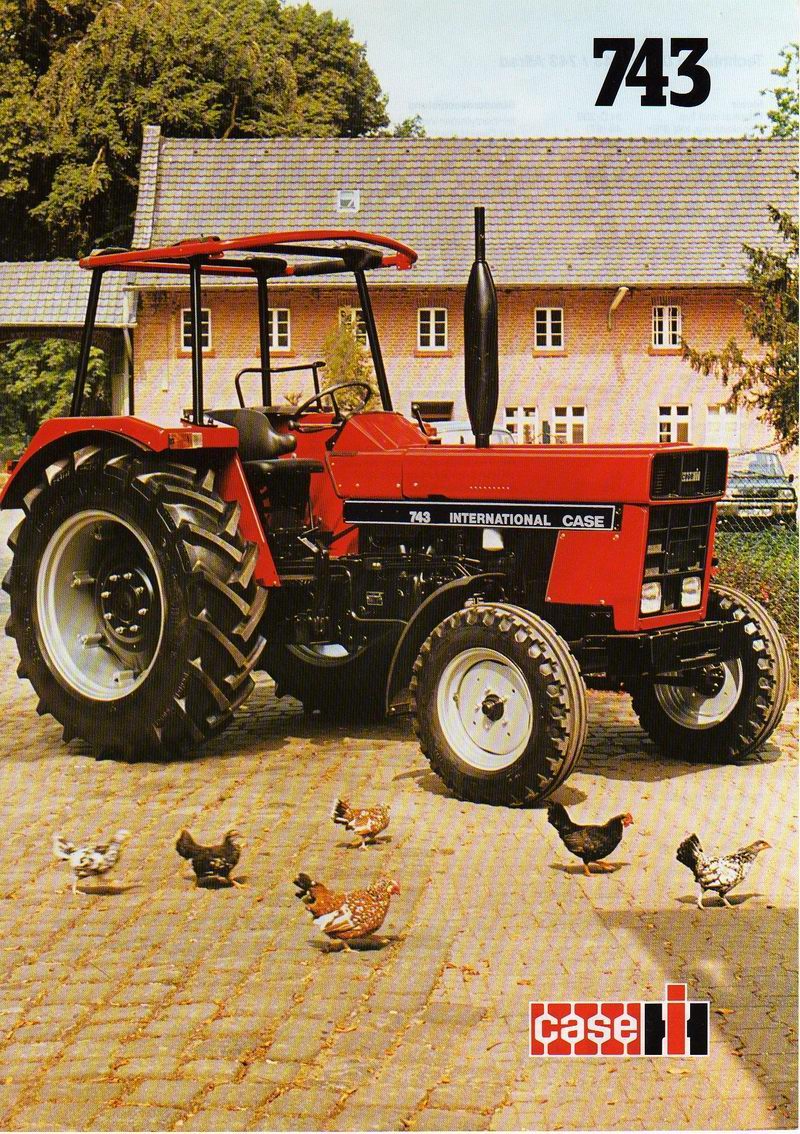

743 |
|
Bildergalerie |
|||||||||
| Baujahre (Built Years) |
1980-1989 |  |
 |
    |
|||||||
| Stück (Built Units) |
1735 | ||||||||||
| Motor (Engine) |
IHC D-239 | ||||||||||
| Art / Zyl. (Type/Cylinder) |
4-Zyl.-Diesel | ||||||||||
| Hubraum (Displacement) |
3911 cm³ | ||||||||||
| U/min. (rpm) |
2300 |   |
|||||||||
| PS (Engine-HP) |
67 |  |
 |
||||||||
| Getriebe (Transmission) |
16+8 30 km/h | ||||||||||
| Bereifung (Tyres front/rear) |
7.50-16 / 16.9-R30 (2 WD) 9.5 R24 / 16.9-R30 (4 WD) |
||||||||||
| Gewicht (Weight) |
2880 - 3510 kg | ||||||||||
| Seriennummer (Serial-No´s) |
D030165 D001000 - D030165 D002971 |
||||||||||
| Die Montage des 743
wurde 1990 zum IH-Werk Doncaster / GB verlagert und dort
bis 1991 fortgeführt. 1990 assembly of the 743 tractor was transferred to IH works Doncaster / GB, 743 was built till 1991. |
|||||||||||
| © matbush Juni 2011 |
